CNC Band Saw Machines
RAXMEKBANDSAW provides high-precision industrial metal cutting solutions, including our automatic CNC Horizontal Band Saw H3-33N, double-column High Precision CNC Band Saw H5-33NⅡ, and intelligent Variable Frequency AI CNC Band Saw H-33AI.
Advanced Metal Sawing Solutions
As a leading metal cutting bandsaw machine manufacturer in China, RAXMEKBANDSAW CNC pursues advanced sawing technology and stable hydraulic systems. We provide high-precision, high-efficiency CNC horizontal band saws, double-column gantry sawing machines, and intelligent AI variable frequency band saws like our H3-33N, H5-33NⅡ, and H-33AI models to support your workshop productivity.
Our Metal Cutting Band Saw Lineup

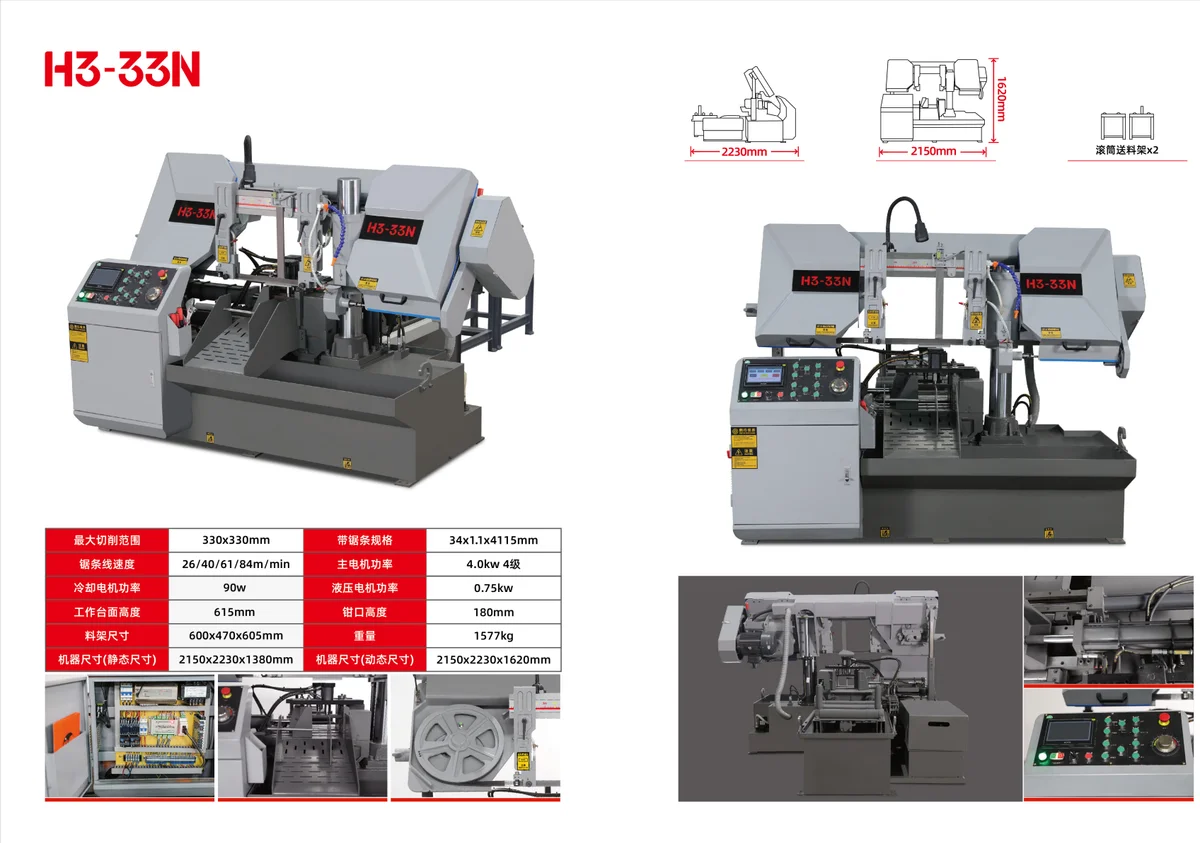

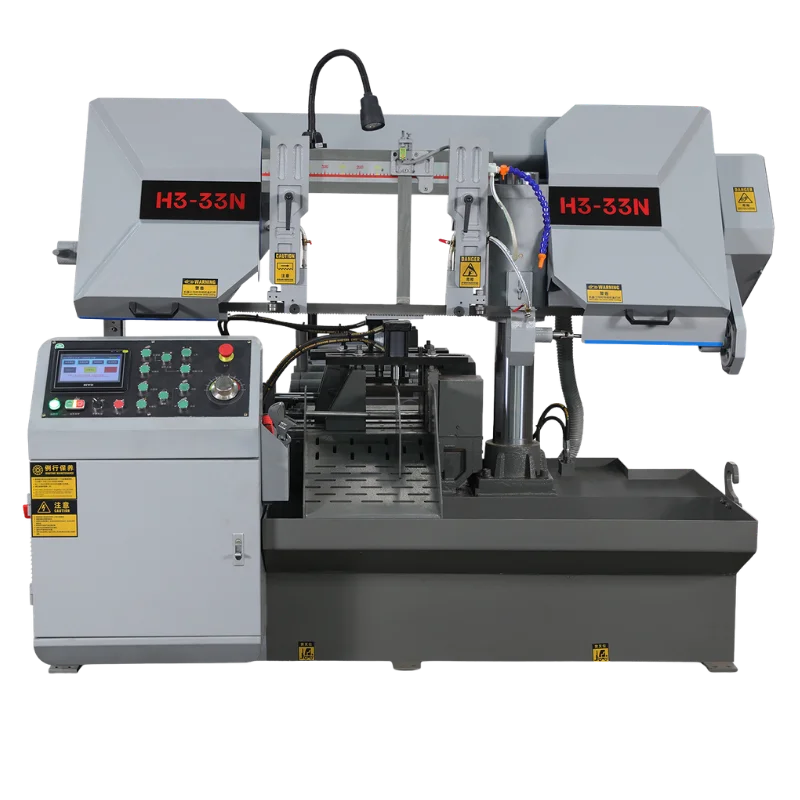

CNC Horizontal Band Saw H3-33N
- Fully automatic double-column CNC horizontal band saw machine with 330mm round/square cutting capacity
- Equipped with standard 34 × 1.1 × 4115 mm saw blade and high-torque 4.0 kW main drive motor
- VFD variable frequency drive for stepless blade speed regulation (15–80 m/min) to cut various metal alloys
- PLC touchscreen controller for programmable automatic cutting cycles, length settings, and batch counts
- Dual hydraulic vise clamping and automatic blade tensioning system with integrated blade breakage safety shut-off
- Built-in recirculating flood coolant system and powered chip conveyor for continuous high-speed industrial sawing

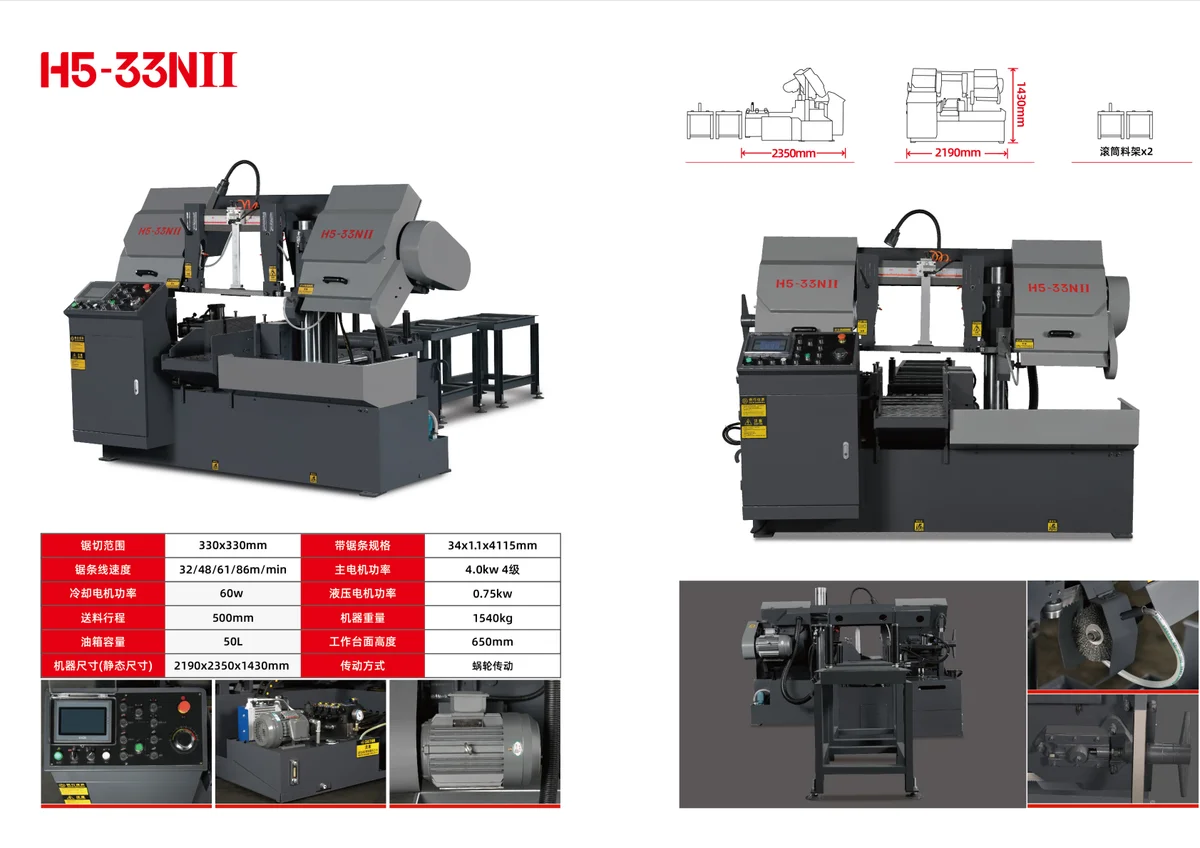

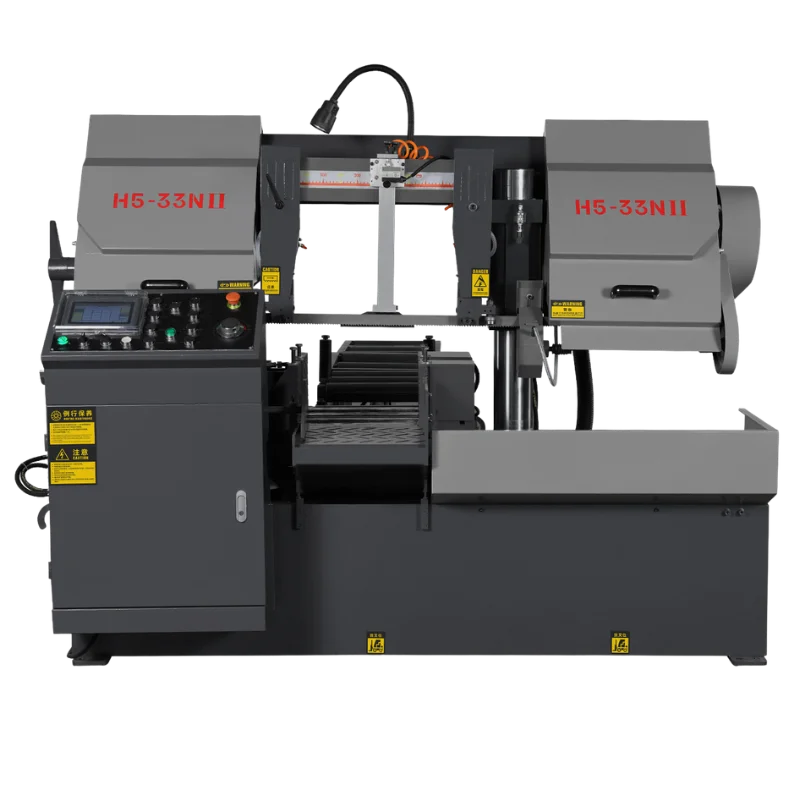

High Precision CNC Band Saw H5-33NⅡ
- Heavy-duty double-column gantry CNC band saw designed for ultra-precise high-volume metal sawing
- Oversized precision-ground columns with dual linear guide rails for maximum rigidity and vibration damping
- High-power main drive motor with inverter variable speed control for infinitely adjustable blade speed matching
- Advanced HMI touchscreen interface with multi-batch program storage and automatic shuttle feed indexing
- Dual hydraulic clamping vises (front/rear) and proportional valve downfeed control for perfect squareness and cut finish
- Supports custom bundle cutting fixtures, laser line alignment, and automatic metal scrap chip conveyor auger

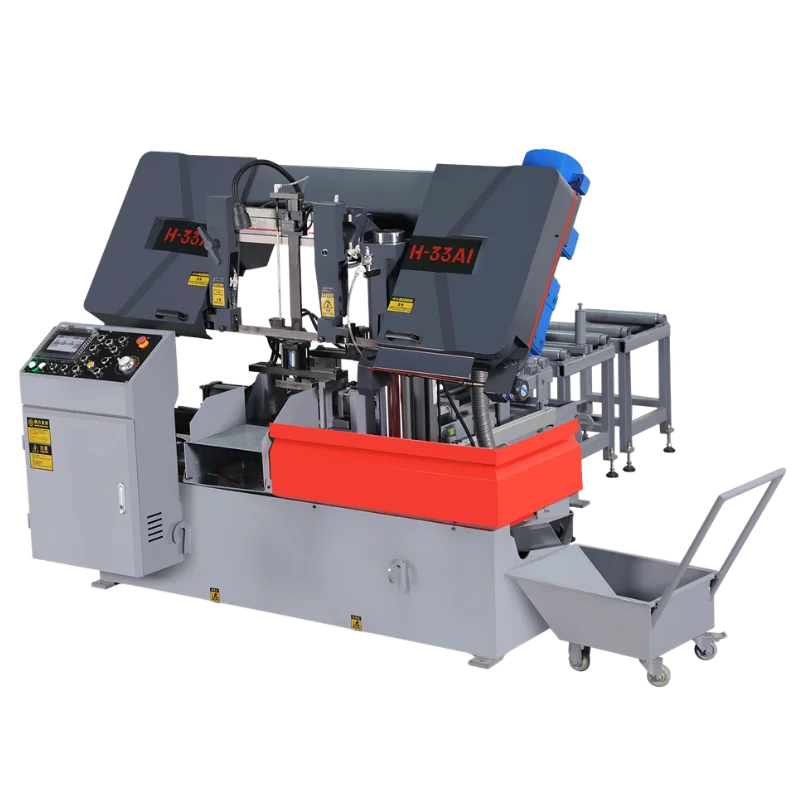

Variable Frequency AI CNC Band Saw H-33AI
- AI-powered automatic CNC bandsaw machine with real-time feed force auto-regulation to optimize cutting efficiency
- Intelligent control system automatically adjusts downfeed speed and blade pressure to prevent band saw blade breakage
- 330mm × 330mm capacity featuring a high-torque VFD variable frequency drive for precise blade speed tuning
- High-precision hydraulic shuttle feed vise with 500mm single stroke and floating self-alignment mechanism
- Industrial PLC controller with HMI touchscreen showing real-time cutting diagnostics and fault history logs
- Includes automatic scraper-type chip conveyor, blade cleaning brush, and hydraulic bundle cutting accessories
Band Saw Machines Buying Guide & FAQ
How to choose the right CNC band saw model (H3-33N vs. H5-33NⅡ vs. H-33AI)?
Choosing the correct model depends on your production requirements:
1. The CNC Horizontal Band Saw H3-33N is the standard for high-speed automatic cut-off operations on solid bars and profiles using PLC programming.
2. The High Precision CNC Band Saw H5-33NⅡ features a heavy-duty double-column gantry design, making it optimal for cutting difficult materials with maximum squareness and alignment accuracy.
3. The Variable Frequency AI CNC Band Saw H-33AI utilizes smart VFD blade speed regulation and AI algorithms to adjust the feed rate dynamically based on material hardness, maximizing blade lifespan.
What are the main advantages of double column bandsaws?
Double column bandsaws (like our H5-33NⅡ and H-33AI models) guide the saw head frame along two heavy-duty pillars/cylinders. This dual-column gantry design provides much greater structural rigidity, minimizes blade vibrations during cutting, and guarantees that the blade cuts perfectly square to the material face. This setup is highly recommended for large steel billets, solid bars, and heavy structural beams.
What automation features does a fully automatic CNC band saw offer?
Our CNC band saw machines (including H3-33N, H5-33NⅡ, and H-33AI) integrate PLC touch-screens where operators can program up to 10 different batch lengths and cutting quantities. The machine automatically clamps the material, feeds it forward using a hydraulic shuttle vise, executes the cut, raises the saw head, and repeats. It also includes automatic blade tensioning, variable frequency speed regulation, and smart sensors to detect material run-out, blade slippage, or blade breakage.
What are the standard delivery times and payment terms?
We require a 30% TT deposit to confirm the order, and the remaining 70% TT balance before shipment. Standard manual and semi-automatic bandsaws have a lead time of roughly 30 to 35 days, while custom gantry or automatic CNC systems can take 40 to 45 days.
