Heavy Duty Band Saw Machines
RAXMEKBANDSAW provides high-precision industrial metal cutting solutions, including our Heavy Duty Band Saw UP-33N, Reinforced Heavy Duty Band Saw UP-43S, High Performance Heavy Duty Band Saw UP-65AI, and Large Capacity Reinforced Band Saw UPG-5060S.
Advanced Metal Sawing Solutions
As a leading metal cutting bandsaw machine manufacturer in China, RAXMEKBANDSAW CNC pursues advanced sawing technology and stable hydraulic systems. We provide high-precision, high-efficiency heavy-duty horizontal band saws, double-column reinforced sawing machines, and high-performance AI bandsaws like our UP-33N, UP-43S, UP-65AI, and UPG-5060S models to support your workshop productivity.
Our Metal Cutting Band Saw Lineup

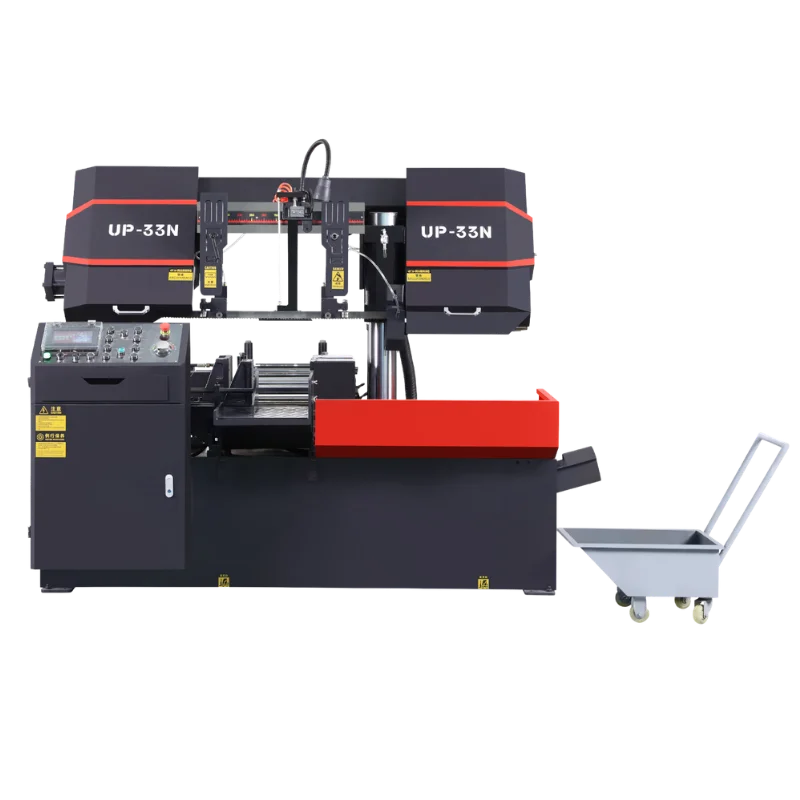

Heavy Duty Band Saw UP-33N
- Heavy-duty double-column horizontal band saw machine designed for continuous cutting of solid steels and pipe tubes
- 330mm round and square cutting capacity with robust 3.0 kW main drive motor
- Hydraulic automatic clamping vise and controlled saw-frame downfeed speed for optimal cut quality
- Automatic blade tensioning system with safety shut-off sensors to prevent band saw blade breakage
- Precision carbide blade guide blocks and backing bearings to ensure high-accuracy straight cuts
- Built-in flood coolant system and manual chip drawer for clean and reliable workshop sawing operations
Reinforced Heavy Duty Band Saw UP-43S
- Reinforced double-column horizontal metal cutting band saw engineered for medium-large billets and profiles
- Enhanced structural frame supporting up to 400mm round and 400mm × 430mm square material capacity
- High-torque gear reducer transmission system coupled with 4.0 kW main motor for smooth heavy sawing
- Semi-automatic hydraulic control for saw head elevation, frame feed rate, and clamping action
- Premium carbide guide blocks and dual tension columns to minimize vibration and extend blade life
- Integrated high-capacity coolant pump and optional bundle cutting attachment for multiple bar runs

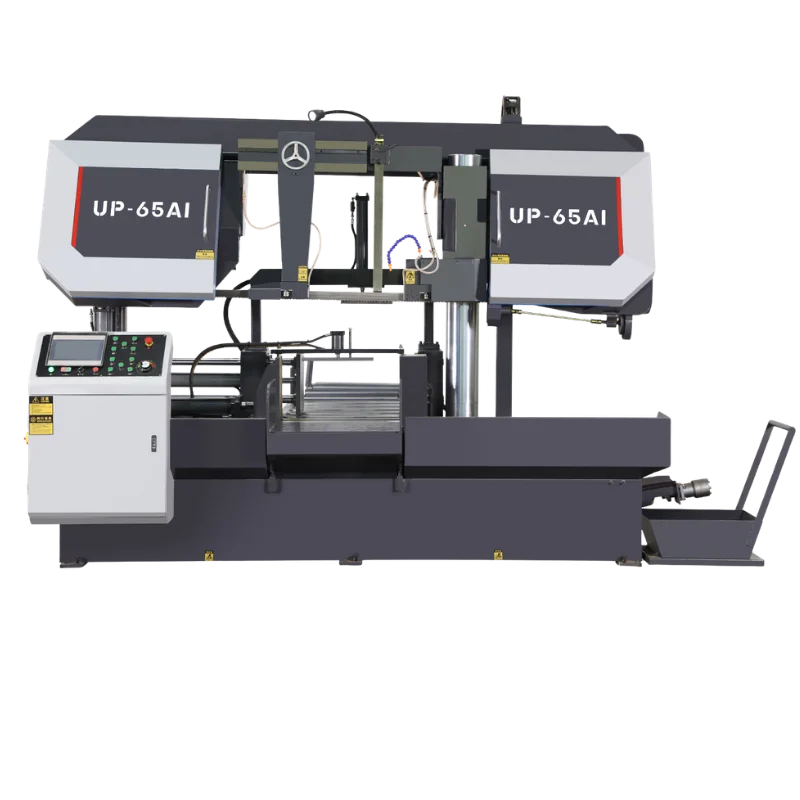

High Performance Heavy Duty Band Saw UP-65AI
- AI-powered high-performance double-column horizontal band saw with real-time cutting feed force auto-regulation
- Smart control system automatically adjusts frame downfeed pressure to prevent blade overloading and wear
- Oversized cutting capacity up to 650mm height, designed for heavy steel casting, forgings, and large shafts
- Infinitely variable blade speed regulation via VFD inverter drive to match carbon steel, stainless, and alloys
- Fully integrated automatic hydraulic blade tensioning and automatic wire brush blade cleaner
- Equipped with automatic powered scraper chip conveyor and heavy-duty flood coolant recirculating system

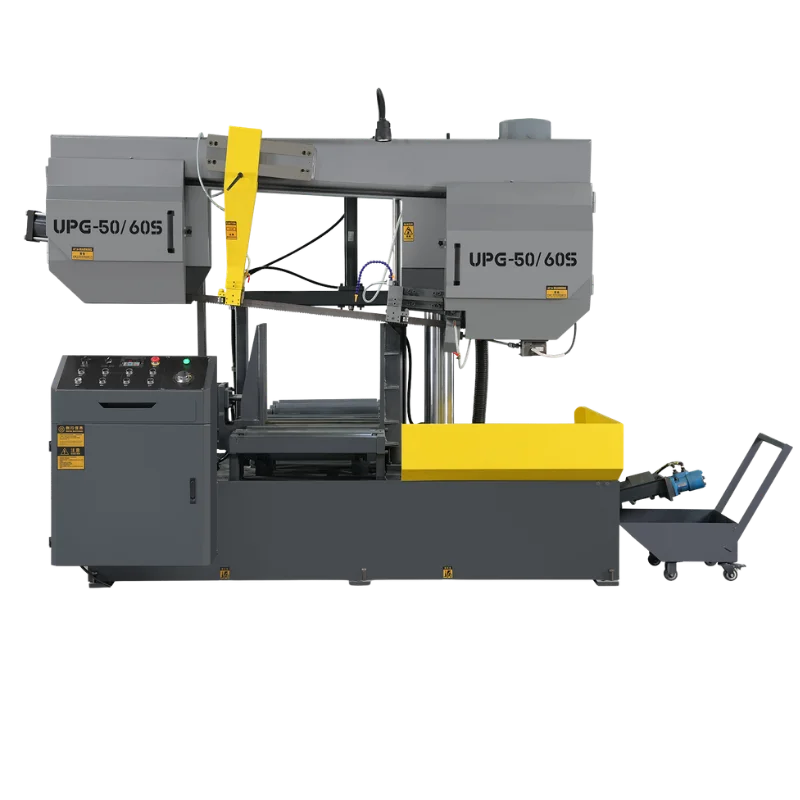

Large Capacity Reinforced Band Saw UPG-5060S
- Extra-large capacity gantry-type reinforced horizontal band saw machine for massive structural steel and plates
- Double-column portal frame design providing ultimate rigidity and precision-ground columns for straight cuts
- Massive cutting capacity supporting up to 500mm height and 600mm width workpiece dimensions
- Semi-automatic hydraulic control of clamping, saw head feed, and auto-stop cycle after cut completion
- Large 41mm wide saw blade powered by high-efficiency drive system to handle tough industrial materials
- Includes integrated laser alignment line guide and automatic scrap metal chip auger conveyor
Band Saw Machines Buying Guide & FAQ
How to choose the right heavy duty band saw model (UP-33N vs. UP-43S vs. UP-65AI vs. UPG-5060S)?
Choosing the correct model depends on your production requirements:
1. The Heavy Duty Band Saw UP-33N is the standard for continuous sawing of solid steel and pipes up to 330mm with reliable automatic hydraulic clamping.
2. The Reinforced Heavy Duty Band Saw UP-43S features a reinforced gantry frame and high-torque gear reducer to handle medium-large billets and profiles up to 400mm.
3. The High Performance Heavy Duty Band Saw UP-65AI utilizes smart AI-driven downfeed feed force regulation and VFD inverter drive to cut giant steel forgings and casting blocks up to 650mm height.
4. The Large Capacity Reinforced Band Saw UPG-5060S is a gantry-type machine offering massive cutting capacity up to 500mm × 600mm for structural steel plates and beams.
What are the main advantages of double column bandsaws?
Double column bandsaws (like our UP-33N, UP-43S, UP-65AI, and UPG-5060S models) guide the saw head frame along two heavy-duty pillars/cylinders. This dual-column gantry design provides much greater structural rigidity, minimizes blade vibrations during cutting, and guarantees that the blade cuts perfectly square to the material face. This setup is highly recommended for large steel billets, solid bars, and heavy structural beams.
What automation features does a fully automatic heavy duty band saw offer?
Our heavy duty band saw machines (including UP-33N, UP-43S, UP-65AI, and UPG-5060S) support automated hydraulic clamping and feed systems. Intelligent models like the UP-65AI integrate AI-based downfeed sensors that monitor cutting resistance and adjust the downfeed rate in real time, preventing blade fatigue. Other features include automatic hydraulic blade tensioning, VFD stepless speed control, and laser guide line projectors.
What are the standard delivery times and payment terms?
We require a 30% TT deposit to confirm the order, and the remaining 70% TT balance before shipment. Standard manual and semi-automatic bandsaws have a lead time of roughly 30 to 35 days, while custom gantry or automatic CNC systems can take 40 to 45 days.
