Mold Steel Band Saw Machines
RAXMEKBANDSAW provides high-precision industrial metal cutting solutions, including our Gear Reducer Mold Steel Band Saw H1-1080S, Worm Gear Mold Steel Band Saw H-1310S, and Variable Frequency Mold Steel Cutting Band Saw H-7043S.
Advanced Metal Sawing Solutions
As a leading metal cutting bandsaw machine manufacturer in China, RAXMEKBANDSAW CNC pursues advanced sawing technology and stable hydraulic systems. We provide high-precision, high-efficiency heavy-duty gantry block cutting machines, worm gear driven saws, and variable frequency mold steel bandsaws like our H1-1080S, H-1310S, and H-7043S models to support your workshop productivity.
Our Metal Cutting Band Saw Lineup

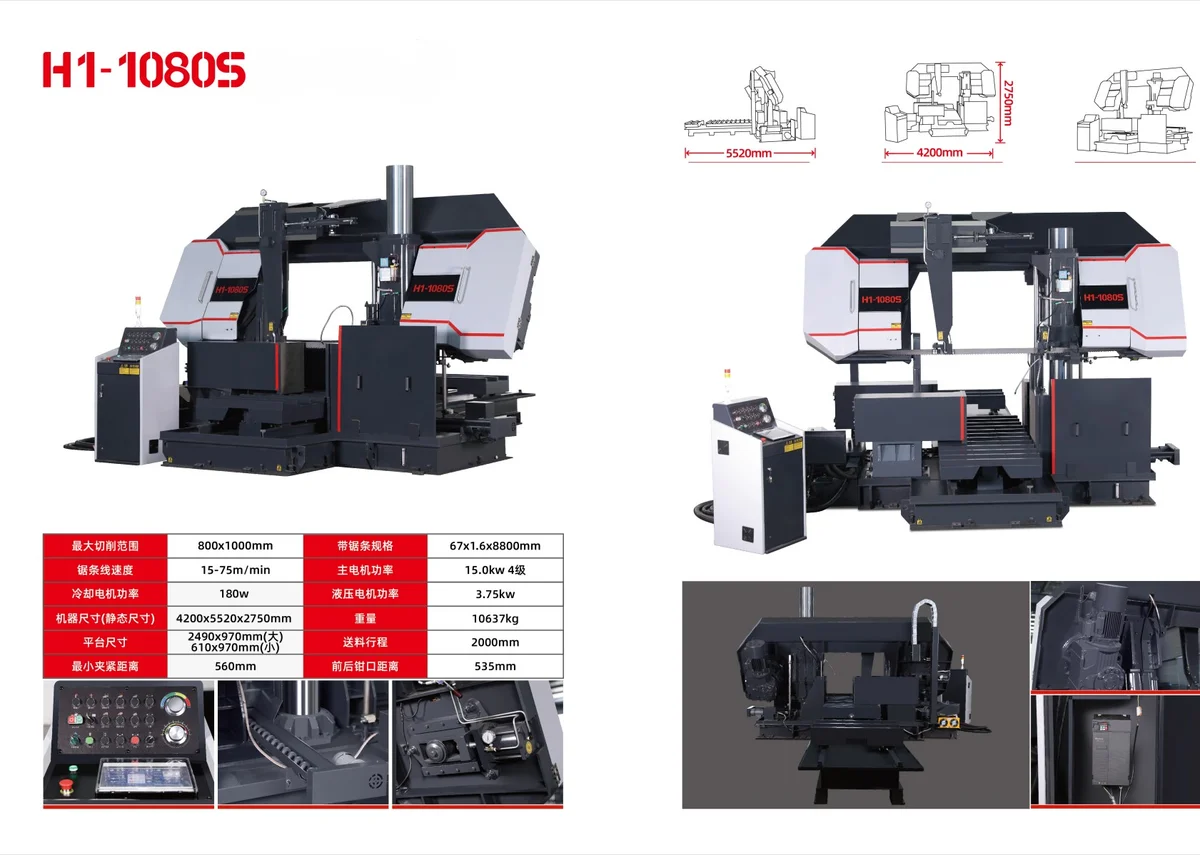

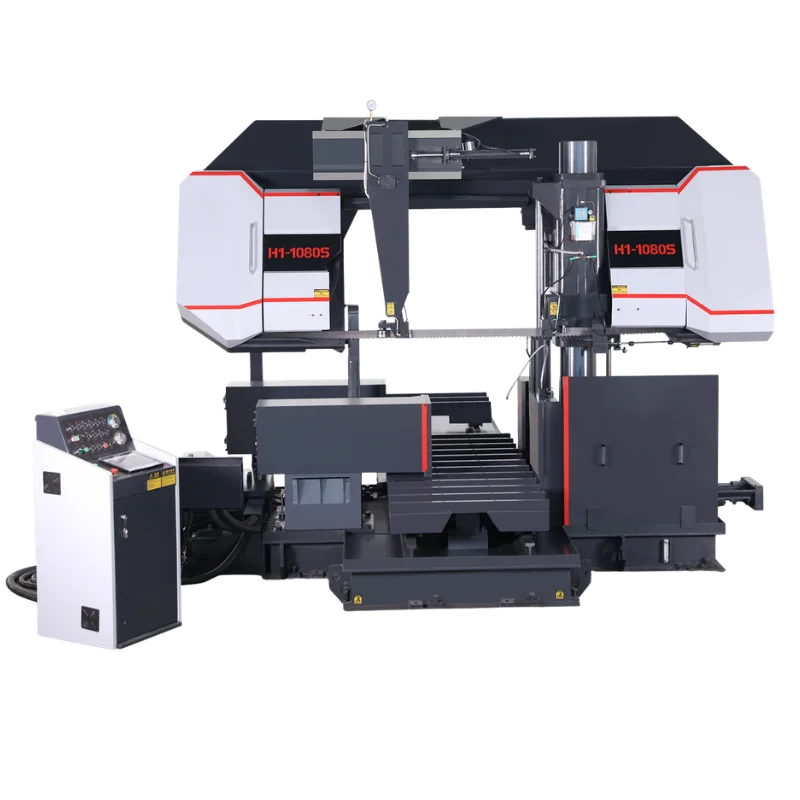

Gear Reducer Mold Steel Band Saw H1-1080S
- Heavy-duty double-column horizontal band saw optimized for slicing dense tool steels and mold blocks
- Robust gear reducer transmission drive providing high torque at low speeds to prevent blade glazing
- Cutting capacity of 1000mm width and 800mm height, ideal for oversized die blocks and metal slabs
- Hydraulic stepless feeding speed control and dynamic dual-column clamping for stable sawing paths
- Precision carbide guide blocks and backing bearings to ensure straightness and minimize material waste
- Integrated flood coolant system and automatic chip scraper for high-efficiency industrial operations

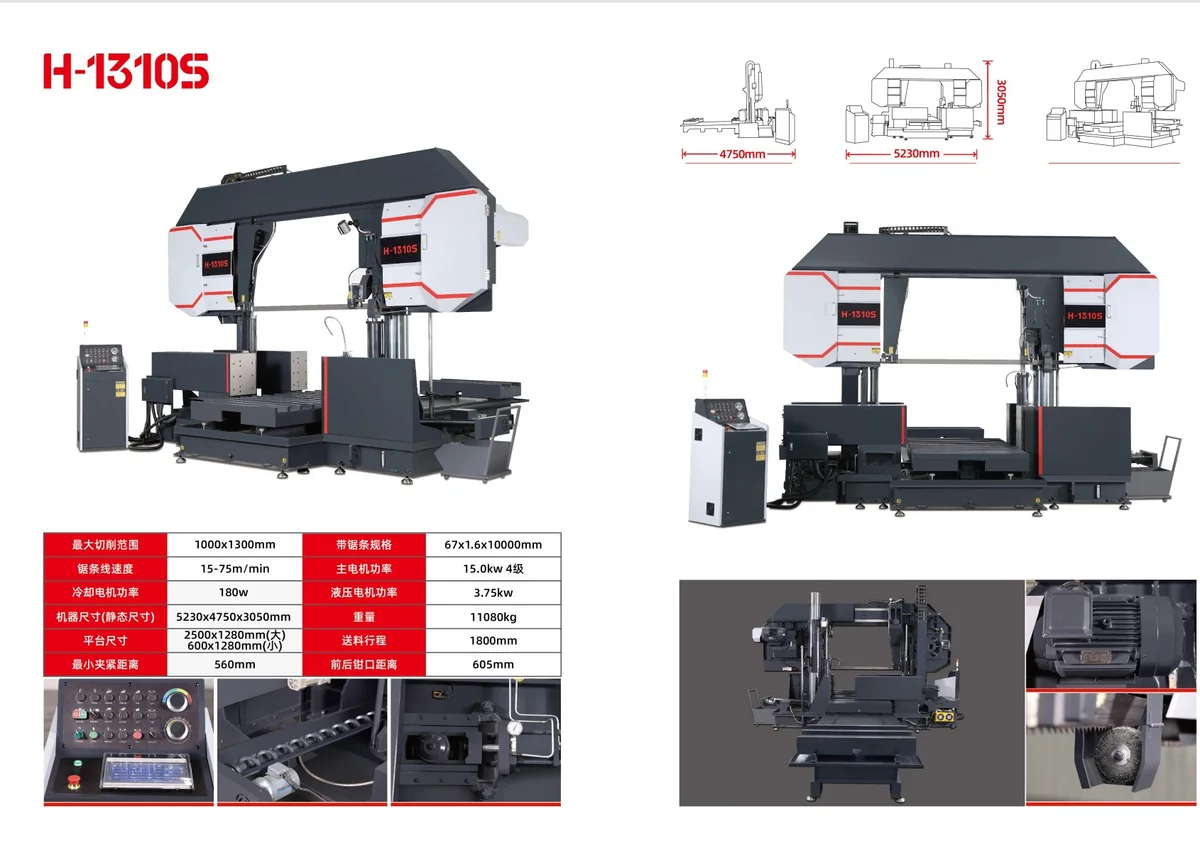

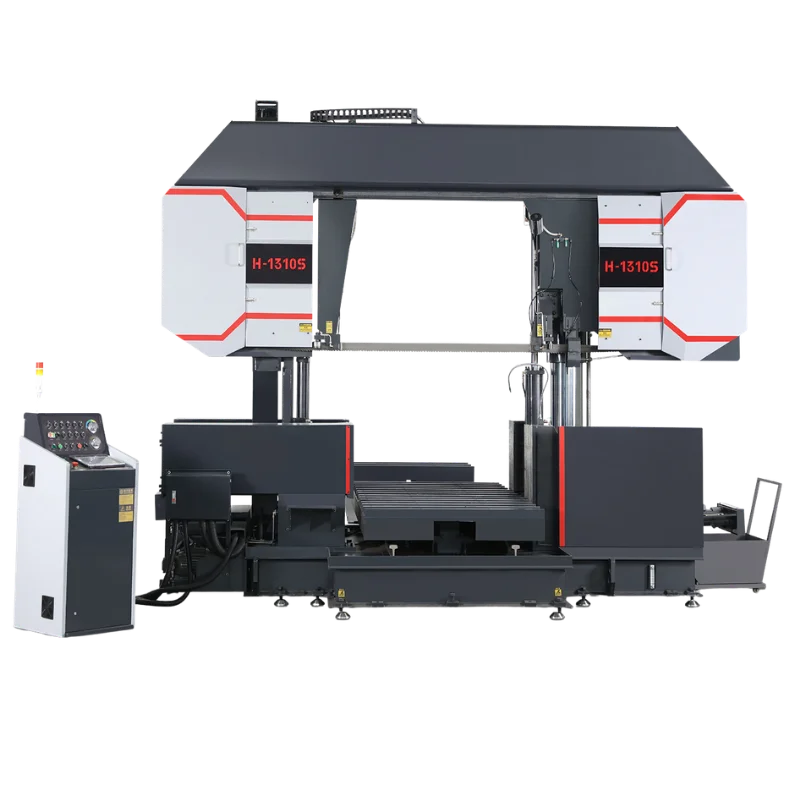

Worm Gear Mold Steel Band Saw H-1310S
- Massive gantry-style double-column band saw engineered for heavy-duty metal bars and large forging dies
- High-efficiency worm gear transmission providing vibration-free operation and smooth torque transmission
- Oversized capacity of 1300mm width and 1000mm height to handle extra-large industrial workpieces
- Hydraulic workpiece clamping and proportional downfeed rate adjuster to maintain teeth load balance
- Hydra-mechanical blade tensioning with integrated automatic limit switch and breakage shut-off
- Heavy-duty roller worktable for effortless material handling and positioning of heavy die blocks

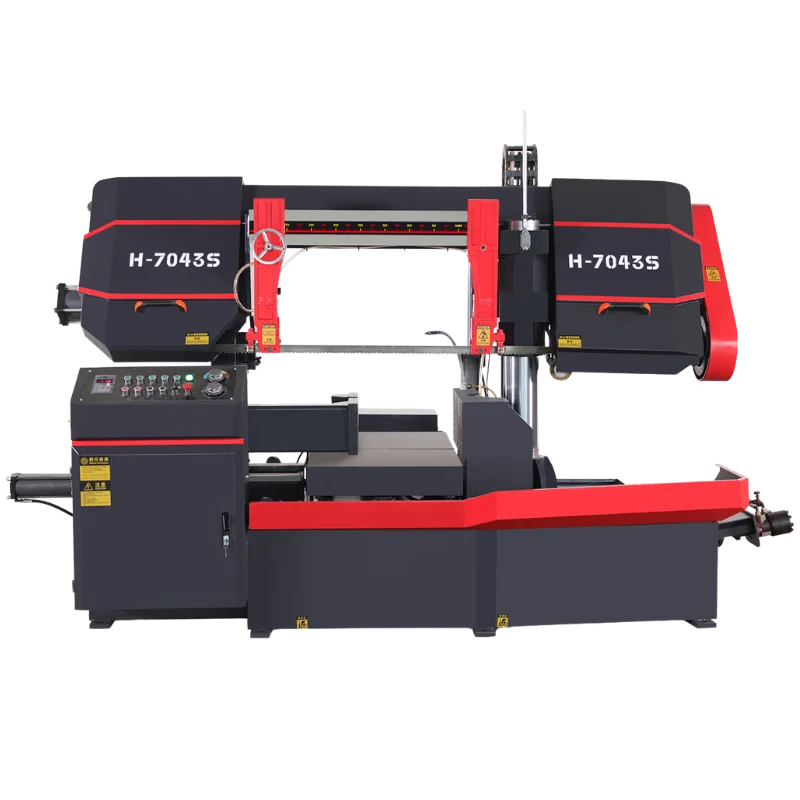

Variable Frequency Mold Steel Cutting Band Saw H-7043S
- Semi-automatic horizontal band saw designed for cutting mold steel, alloy steel, and carbon profiles
- Variable frequency inverter (VFD) drive for stepless blade speed regulation matching the material hardness
- Medium-duty capacity of 700mm width and 430mm height, perfect for general tooling workshops
- Dual hydraulic cylinders control the frame downfeed rate for optimized tool life and straight cuts
- Rigid double-column guide structure with precision-ground steel pillars to reduce vibrations
- Equipped with powered blade cleaning wire brush, high-flow coolant pump, and wireless control capability
Band Saw Machines Buying Guide & FAQ
How to choose the right mold steel band saw model (H1-1080S vs. H-1310S vs. H-7043S)?
Choosing the correct model depends on your production requirements:
1. The Gear Reducer Mold Steel Band Saw H1-1080S features a robust gear reducer transmission drive providing high torque at low speeds to prevent blade glazing during large die-block slicing.
2. The Worm Gear Mold Steel Band Saw H-1310S utilizes a smooth worm gear transmission that dampens vibrations when cutting heavy tool steel slabs and forging dies.
3. The Variable Frequency Mold Steel Cutting Band Saw H-7043S is equipped with a stepless variable speed VFD drive to easily adapt to different alloy and mold steel material hardness levels.
What are the main advantages of double column bandsaws?
Double column bandsaws (like our H1-1080S, H-1310S, and H-7043S models) guide the saw head frame along two heavy-duty pillars/cylinders. This dual-column gantry design provides much greater structural rigidity, minimizes blade vibrations during cutting, and guarantees that the blade cuts perfectly square to the material face. This setup is highly recommended for large steel billets, solid bars, and heavy structural beams.
What automation and design features does a mold steel band saw offer?
Our mold steel band saw machines feature highly rigid double-column or gantry designs to eliminate vibration during die-block cutting. Automation features include hydraulic workpiece clamping, automatic frame upfeed/downfeed control, stepless variable speed controls via worm gears or VFDs, integrated coolant delivery systems, and automatic scraper or auger chip conveyors.
What are the standard delivery times and payment terms?
We require a 30% TT deposit to confirm the order, and the remaining 70% TT balance before shipment. Standard manual and semi-automatic bandsaws have a lead time of roughly 30 to 35 days, while custom gantry or automatic CNC systems can take 40 to 45 days.
